Lexus has reveals the IS F CCS-R race car, ahead of its debut at the Pikes Peak International Hill Climb on July 8, 2012
The Pikes Peak Hill Climb is an annual automobile and motorcycle hillclimb to the top of the Pikes Peak mountain in Colorado. The track measures 12.42 miles with over 156 turns and climbs 4,720 feet.
The car overall weight is 693 lbs. lighter than the stock model thanks to lightweight doors, exterior and interior carbon fiber parts, lightweight bucket seats and other .
the Pikes Peak version is powered by a 5.0-liter V8 engine developing 416 hp and 371 lb-ft of torque, connected to an eight-speed transmission and a limited-slip diff at the back. That combined with the lightweight body should make it a helluva lot faster than the base car.

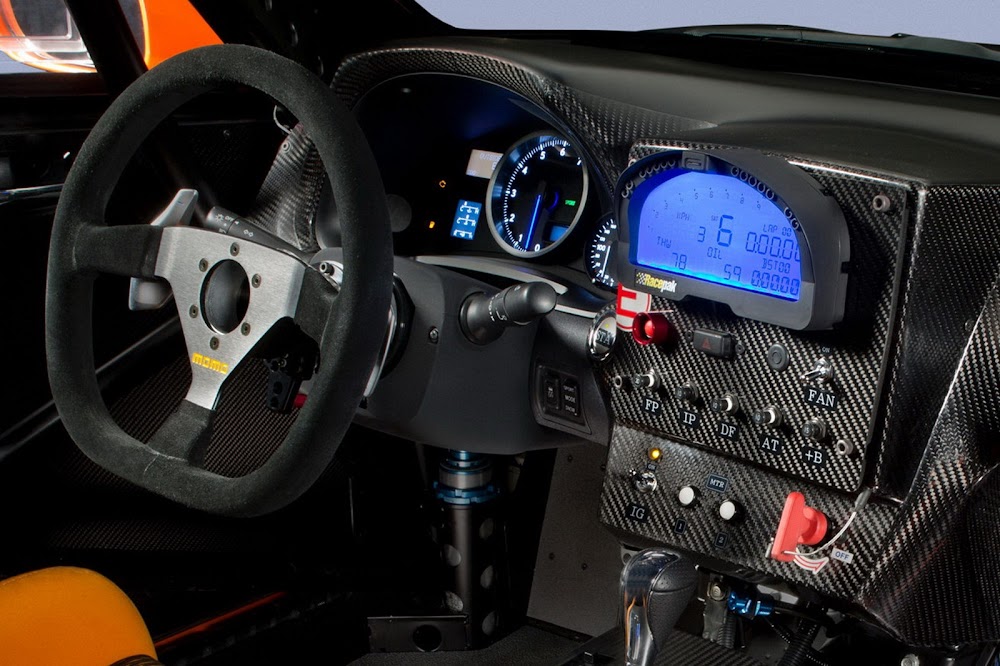

Inside, the car is also stripped down to cut weight. The dashboard is replaced with carbon fiber, and there are lightweight seats. In total, it weighs in at 3,087 lbs, which is 693 fewer than the production version.
Press Release
Lexus IS F CCS-R Race Car
EXTERIOR DIMENSIONS
Wheelbase 107.5 in.
Overall Length 187.4 in.
Overall Width 71.5 in.
Overall Height 54.5 in.
WEIGHT
Curb Weight 3,087 lbs. or less (693 lbs. less than stock)
ENGINE
Designation 2UR-GSE
Displacement 5.0L
Horsepower 416 @ 6,600 rpm
Torque 371 lb.-ft. @ 5,200 rpm
Fuel system SFI D-4 direct-to-cylinder injection with secondary port injectors
DRIVETRAIN
Layout Front engine, rear-wheel drive system
Transmission 8-speed Sport Direct Shift automatic with paddle shift and manual mode
EXTERIOR
Orange mica exterior paint
Reinforced monocoque (with roll cage)
Carbon fiber hood, door handles, front fender, front spoiler, front canard, rear spoiler, ventilator
Polycarbonate windows
Lightweight door
WHEELS/TIRES
SSR
18x8.5J, off-set 30 front
18x9.5J, off-set 40 rear
Yokohama /ADVAN NEOVA A050 tires
245/40 R18 front
255/40 R18 rear
BRAKES
Brake cooling system
Racing brake kit
Stainless steel mesh brake hose
SUSPENSION
Adjustable camber front upper arm
Modified race suspension
Reinforced bushings and mounts
EXHAUST
Racing exhaust system
OTHER MECHANICAL
Engine oil cooler
Transmission oil cooler
Differential oil cooler
Mechanical LSD
RACING EQUIPMENT
120L fuel cell
Air jack system
Fire extinguishing system
Data logger
Kill switch
Tow strap
INTERIOR
Carbon fiber dashboard, center console, door and interior trim
HANS compatible full bucket driver's seat
Lightened interior (delete power windows, door locks, rear seats, roof lining, etc.)
Six-point seat belt
Small-diameter steering wheel with paddle shifters
