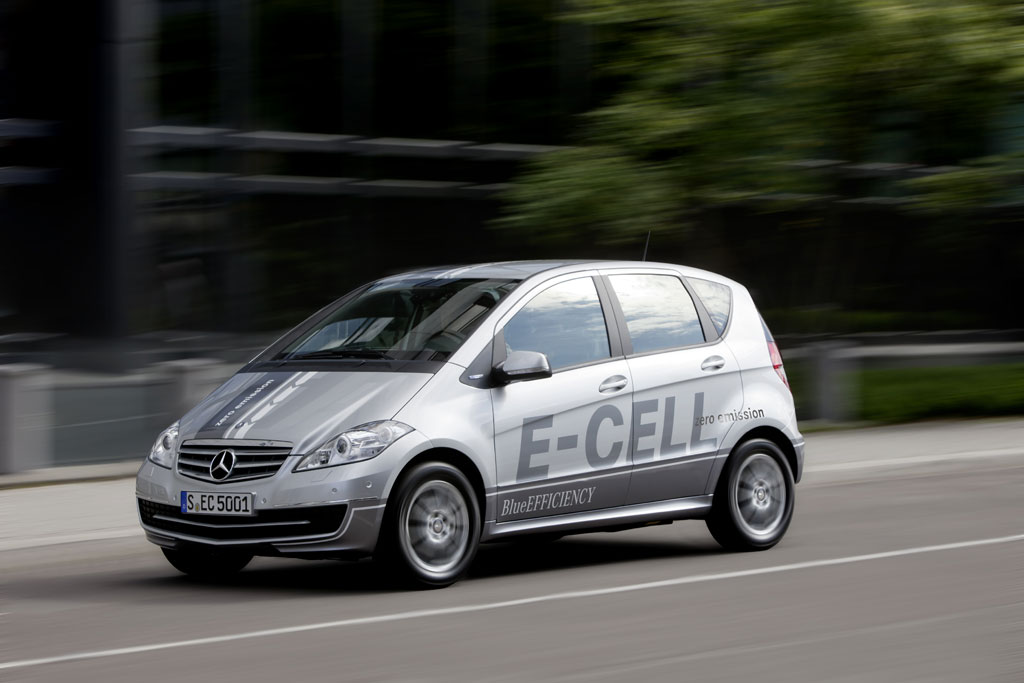

2011 Mercedes-Benz A-Class E-CELL
Daimler released complete details on its 2011 Mercedes-Benz A-Class E-Cell, a limited production electric conversion of its aging A-Class five-door small hatchback, sold mostly in Europe and not available in the United States.
The four-door, five-passenger hatchback is based on the standard A-Class and is fitted with a 95-horsepower electric motor developing 214 pound-feet of torque. A pair of lithium-ion batteries provides a range between charges of 124 miles. Top speed is electronically limited to 93 mph, with 0-60-mph acceleration in less than 14 seconds.

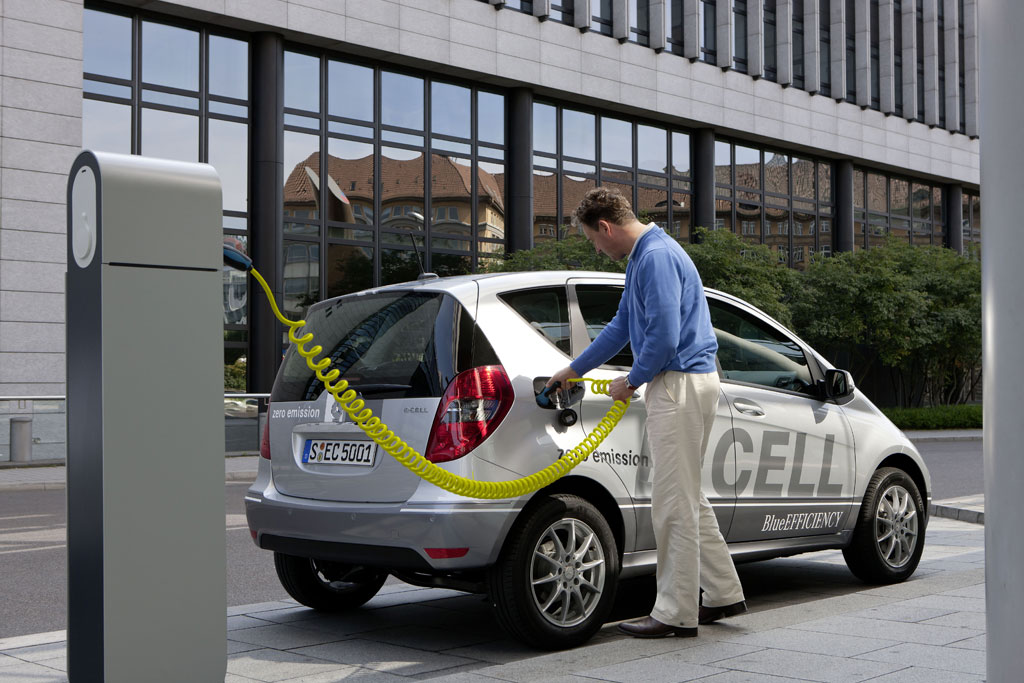

With two lithium-ion batteries, the car has a range of just over 124 miles. The batteries need a full eight hours of 230-volt home outlet charging to have enough juice for about 60 miles. This time is cut in half when charging from a 400-volt public recharge point or a specialized wall-box.

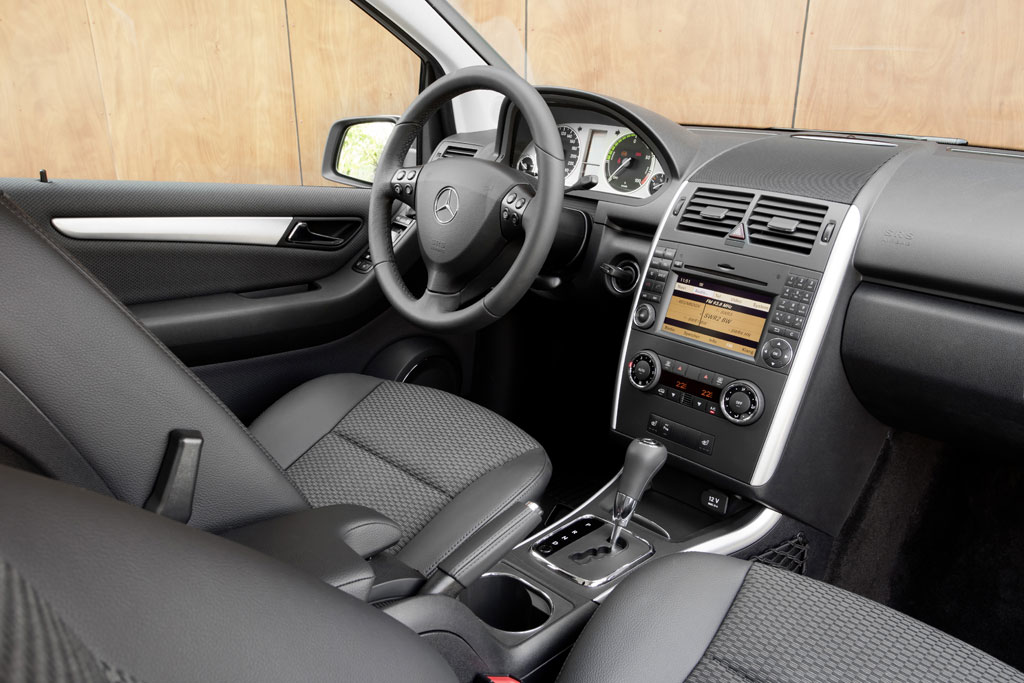

The list of standard equipment will include bi-xenon headlamps, COMAND APS, an active park assist for automatic parking, and the THERMOTRONIC automatic climate control system.
Source: Mercedes-BenzMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLMercedes-Benz A-Class E-CELLThe family electric car for urban areas: compact five-seater with battery-powered electric drive and a range of over 124 milesFollowing the B-Class F-CELL fuel-cell car, Mercedes-Benz now introduces the new A-Class E-CELL as its second electric car built in series-production conditions. The five-seater with battery-powered electric drive meets all the requirements for a family car for everyday use. It is based on the five-door version of the current A-Class, and features a generous interior space and luggage compartment for maximum versatility. No compromises have been necessary in terms of space and variability, with compact storage batteries that are located extremely well-protected and in a space-saving way in the vehicle underbase. The car's two high-efficiency lithium-ion batteries provide a range of over 124 miles (NEDC). The car is powered by a quiet, locally emission-free electric drive with peak output of 95 hp, developing a high torque of 290 Nm. A total production run of 500 A-Class E-CELL cars will be built at Rastatt from autumn 2010. The vehicles will be leased to selected customers in several European countries, including Germany, France and the Netherlands.Five doors, five seats, the same luggage compartment volume as in the internal combustion engine A-Class (435 to 1370 litres), a 350-kilogram payload measured as per the relevant EC directive and high variability of the interior and luggage compartment: this is what makes the new A-Class E-CELL a family car for everyday use. The sophisticated sandwich structure provides both an extremely comfortable in-car environment and maximum protection for passengers and components in the event of a collision."Over our almost 125-year history, we have accumulated extensive experience and know how in the area of electric vehicles, including both battery and fuel-cell. This know how has already provided the basis for getting two electric cars for everyday use onto the road: the smart fortwo electric drive, and the B-Class F-CELL. The story now continues with our third electric car, the A-Class E-CELL., whose start of production is scheduled for autumn this year. The new car is a battery-driven electric Mercedes that enlarges our portfolio and offers our customers the kind of driving pleasure, comfort and safety that they have come to expect", says Dr Thomas Weber, the Daimler AG Board of Management member responsible for Group Research and Development Mercedes-Benz Cars.Driving pleasure with zero emissions Along with exemplary safety, optimum comfort and a high level of suitability for daily use, the A-Class E-CELL also offers other strengths not always found in contemporary electric cars: agility and driving pleasure. The features are based on a low centre of gravity, partly the result of the installation of the batteries under the passenger compartment, in the"sandwich" structure of the vehicle floor. This gives the car excellent road-holding and sprightly handling characteristics - qualities that clearly set the A-Class E-CELL apart from other electric cars, which often have heavy and bulky storage batteries located in the boot or by the rear seat. Another benefit from this installation location is the provision of best-possible protection against the intrusion of structural components in the event of a head-on collision or impact from the rear. This is because the batteries are located outside the vehicle body's deformation zones. The high-stability characteristics of the sandwich structure of the floor also provide outstanding protection for both battery and passengers in a lateral collision scenario.High-performance electric drive with long range The electric drive of the A-Class E-CELL is a permanent-field synchronous unit developing a peak output of 95 hp, a continuous power rating of 68 hp and a high maximum torque of 290 Nm, as expected for an electric drive, available right from the first revolution. This makes the A-Class E-CELL an outstandingly assured and dynamic performer on the road, taking just 5.5 seconds to accelerate from 0-37 mph. A kick-down function is used to deliver maximum acceleration, according to the current charge level and battery temperature. Maximum speed is electronically set at 93 mph.The energy storage units are two high-performance lithium-ion batteries based on high-voltage technology. The advantages of lithium-ion batteries include their compact dimensions and significantly higher efficiency in comparison with nickel-metal-hydride (NiMH) batteries. They offer 30 percent more energy density than NiMH technology, and 50 percent more power density. Other benefits include high charging efficiency and a long service life. The combined energy capacity of the two lithium-ion batteries is a total of 36 kWh. With fully charged batteries, the A-Class E-CELL has a range of over 124 miles (NEDC).Efficient battery cooling system A special thermomanagement system keeps the high-voltage batteries cooled to within an optimum temperature window. The cooling system is based on a low-temperature cooling circuit. Fluid cooling with a water-glycol mixture ensures a stable operating temperature supporting the high degree of efficiency and the longevity of the energy storage. In very high ambient temperature conditions, the battery cooling system is boosted with the coolant circuit of the air-conditioning system. The electrical drive system and two on-board chargers are cooled with a high-temperature cooling circuit. This circuit keeps the units working at optimum operating temperatures, with maximum power delivery from the drive system. The car's power electronics supply the 12-volt vehicle electrical system via a DC/DC converter with electric current from the high-voltage system. The electronics system also controls other functions such as the heating and air-conditioning systems in order to minimise the load placed on the battery for this purpose.Flexible charging options The batteries of the A-Class E-CELL can be either replenished at public charging points or plugged into an ordinary household power socket. A range of charging options are available, including single-phase 230-volt sockets, three-phase sockets in a household wall-box, and public recharging points. Using a single-phase 230-volt network, it takes around eight hours' charging time to accumulate the energy required for a range of 62 miles (NEDC). This time is reduced to just three hours in the case of charging from a wall-box or at a roadside recharging point.Daimler and a number of other European automakers and energy utilities have agreed on standardised charging plugs and sockets, with an ultimate aim of worldwide standardisation. This makes the technology more customer-friendly, and is seen as a key prerequisite for the rapid spread of electric mobility.Intelligent charging management Like the smart fortwo electric drive in its category, the A-Class E-CELL is the world's first vehicle in its class to be fitted with an intelligent charging management system based on"SmartCharge Communication". Via the vehicle electronics system, all relevant information - such as the electricity supply contract identification data - is exchanged with the charging point. Benefits include a convenient, simple and totally reliable billing system.Other intelligent features of the car include pre-start climate control. While the A-Class E-CELL batteries are being charged at home or at a roadside charging point, the interior can be pre-heated or cooled to a temperature set by the driver. Another function enables the driver to monitor charging progress and therefore the present range available, via the internet or a smartphone, for example.The A-Class E-CELL electronics also provide for proactive control of the charging operation. So if the electric car is parked for a long period, recharging can be set to take place at times when electricity is cheaper, for example during the night. The intelligent interface in the A?Class E?CELL provides a range of billing, control and monitoring functions, making electric mobility convenient and safe, and therefore very customer-friendly. The vehicle is automatically immobilised on connection of the charging cable to the socket, preventing any possibility of driving off by mistake while charging is in progress. This makes the recharging operation even safer and more convenient for the user."Everything under control" when out on the road To make vehicle handling and control as easy, safe and transparent as possible for the driver, the A-Class E-CELL has its own control and display concept specifically designed for the requirements of an electric car. The multifunction display in the vehicle shows the battery charge status, trip data such as kilometres driven, travelling time, average speed and average fuel consumption, along with the remaining range and residual electrical energy capacity (SoC = state of charge).Another detail specific to the system is a display of the currently available drive power. Meanwhile, the rev counter normally to be found on the instrument panel is replaced with an indicator showing the instantaneous drive power demand or recovery power. Green, white and red-coloured segments show whether the drive system is currently operating in charge, economy or boost mode.High-quality equipment typical for Mercedes The new A-Class E-CELL also has plenty to offer in terms of Mercedes-quality equipment. Standard highlights in the premium quality with this innovative electric car include bi-xenon headlamps, COMAND, an active park assist for automatic parking and an automatic climate control system are all available. A special additional function is the ability to preset the interior climate during charging, i.e. raising or lowering the compartment temperature according to the weather conditions. The car also has a comprehensive range of safety features, including rear window bags and sidebags, and sophisticated seating and lighting packages.External features of this battery-powered electric car include the standard polar silver painted body and an"E-CELL" sign in silver lettering on the boot.Highest safety standards Mercedes-Benz applies the same high safety standards in the A-Class E-CELL as in all its other series-produced vehicles. The electric drive system has demonstrated readiness for series production in extensive practical testing programs. Key components have also been proven in Mercedes-Benz fuel-cell vehicles, for example, allowing Mercedes engineers to draw on the experience gained from more than 4.5 million test kilometres in everyday use. The integrated safety concept reflects the specific characteristics of the vehicle's innovative drive system. The lithium-ion batteries and high-voltage system of the A-Class E-CELL are protected with a comprehensive safety concept:
  • All cables are clearly colour-coded, and safety warnings are placed on high-voltage components.
  • Generously dimensioned insulators and special plugs provide full contact protection for the entire system.
  • An electronic controller continuously monitors safety requirements and immediately alerts the driver to any malfunctions in the high-voltage system.
  • All high-voltage components are connected in an electric loop. This means that the high-voltage system is automatically completely disconnected in the event of a malfunction or an accident.
  • The high-voltage system is also automatically completely disconnected when the ignition switch is placed in the"off" position, or in the event of possible faults.
  • The system is continuously monitored for short circuits.
  • An automatic drive disabler activated when the charging cable is connected prevents any possibility of the car being driven off by mistake.
Modular system for electric cars In line with the strategy used for hybrid development, Mercedes engineers have also developed a modular system for electric vehicles with battery and fuel-cell. The benefits include the efficient use of shared parts in all the brand's electric vehicles. All the key components of electric cars are appropriate for a modular approach - for example, the electric drive of the A-Class E-CELL is also used in the B-Class F-CELL. Both energy storage units in the electric A-Class are the same as the battery in the smart fortwo electric drive.Profile description and technical data for the A-Class E-CELL
  • Locally emission-free, exclusively battery-powered electric vehicle with a range of more than 200 kilometres NEDC (new European driving cycle).

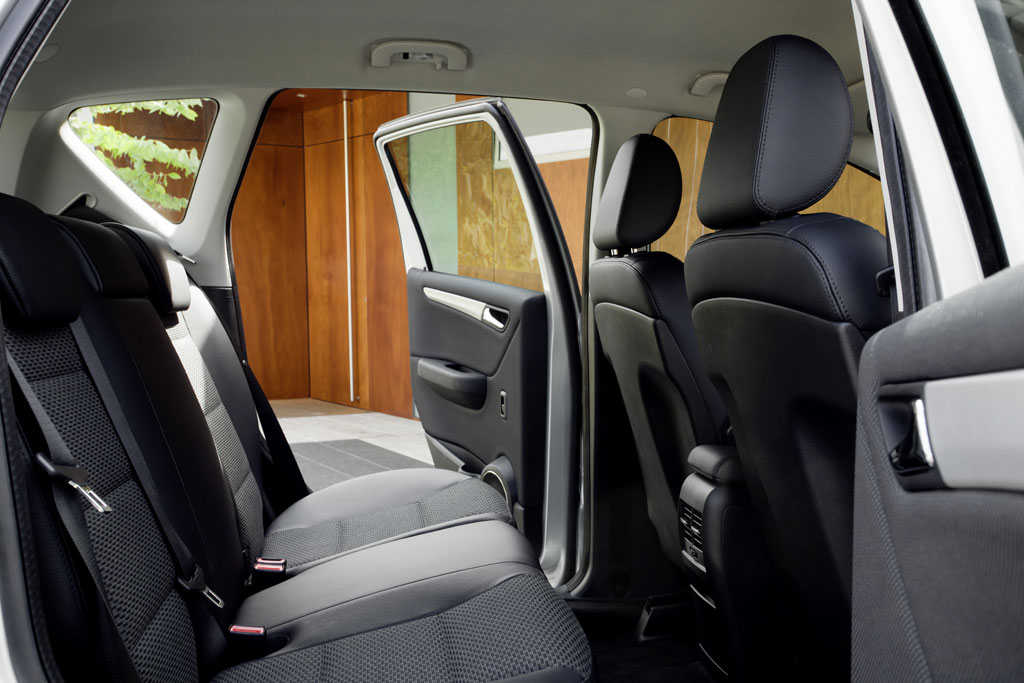

  • Five-seater compact car meeting all requirements for everyday use.
  • Two liquid-cooled lithium-ion batteries with 36 kWh storage capacity.
  • Battery system location leaving spacious interior and luggage compartment completely unobstructed.
  • Power electronics with integrated DC/DC converter for 12-volt supply.
  • Front axle drive.
  • THERMOTRONIC air-conditioning and pre-start climate control via charging plug.
  • Series production run of 500 units to start in autumn 2010.
Drive systemElectric drive, lithium-ion battery
Continuous power rating (kW/hp)50/68
Peak power (boost) (kW/hp)70/95
Rated torque (Nm)290
Maximum speed (km/h)150
Acceleration from 0 to 100 km/h (s)14
Acceleration from 0 to 60 km/h (s)5,5
Charging time for 100 km range (NEDC)8 h from domestic mains socket (230 V)3 h from wall-box / public charging point (400 V)
Range (km) NEDC>200
Energy capacity of lithium-ion battery system (kWh)36
Payload (kg)
*) As per EG directive, including driver (68 kg) and luggage (7 kg)
350*)
Luggage compartment volume (l)435 - 1.370
Infrastructure for electric vehicles Towards a comprehensive network of charging points and hydrogen filling stations
  • Mercedes-Benz and smart electric vehicles in use around the world in
  • "e-mobility" projects
  • Joint plan with the German Federal Ministry of Transport and the energy industry for development of a hydrogen infrastructure
  • "e-mobility Baden-Württemberg" joint project between EnBW and Daimler makes the birthplace of the automobile a pioneering region for electric mobility
Emission-free mobility is already a reality today, with Mercedes-Benz and smart electric cars meeting all the requirements for everyday use. The smart fortwo electric drive is the pioneer for exclusively battery-driven electric vehicles. The second generation of this car currently in production features a high-efficiency lithium-ion battery providing a range of 135 kilometres and impressive driving performance. And the portfolio of Mercedes-Benz battery-powered electric vehicles is now further extended with the new A-Class E-CELL, that has a range of over 200 kilometres, five full-size seats and unrestricted space in the interior and luggage compartment. Like all battery-powered electric vehicles, the smart fortwo electric drive and A-Class E-CELL are mainly suitable for use in urban areas.The Mercedes-Benz B-Class F-CELL with fuel cell and electric drive system carries its own fuel, and its greater range of around 400 kilometres allows both emission-free driving in city traffic and longer journeys outside city limits. It takes just about three minutes to completely fill its tanks with hydrogen gas from a dispenser device that has already been standardised all around the world. That makes the B-Class F-CELL the electric car with the longest range and shortest"charging time".One of the prerequisites for widespread customer acceptance and the rapid spread of electric vehicles is the availability of an adequate filling and charging infrastructure. Daimler is therefore actively committed to the development of a comprehensive network of charging points and hydrogen filling stations. In September 2009, the company collaborated with the German Federal Ministry of Transport and partners from the energy industry to start the"H2 Mobility" initiative for the construction of a hydrogen infrastructure in Germany. At the same time Daimler made a joint commitment with other leading automakers to have several hundred thousand fuel-cell vehicles on the road as from 2015. And in parallel with these efforts, the automobile manufacturer from Stuttgart is also working with a range of partners at European level on moving ahead with a public electricity-charging infrastructure. There is a clear need for such filling points, since even though electric vehicles such as the A-Class E-CELL can easily be charged up in a garage overnight, around 40 percent of European car owners do not have this kind of parking place for their vehicle.Mercedes-Benz involvement in"e-mobility" projects to get electric cars onto the road Electric vehicles under the Mercedes-Benz and smart brands are already running successfully in a series of"e-mobility" projects in Germany, France, Italy, Spain, the United Kingdom and Switzerland. Other markets include Belgium, the Netherlands, Portugal, Denmark and the Czech Republic, and also North America (USA and Canada). For the project in Berlin, for example, Daimler has provided over 100 electric vehicles, while its project partner RWE is responsible for the construction of 500 electricity charging points within the territory of the city, to be supplied solely with power generated from renewable sources.Baden-Württemberg region to lead the way towards electric mobility In June 2010, EnBW Energie Baden-Württemberg AG and Daimler started a joint"e-mobility Baden-Württemberg" initiative. The aim is to turn the birthplace of the automobile into a pioneering region for locally emission-free electric mobility within the next two years. Starting point of the initiative is the regional capital Stuttgart, with Karlsruhe providing a second focal point in the region. Daimler and EnBW are setting new standards with their strategic partnership. EnBW brings to the table its expertise, with in-depth know-how of energy logistics used in the development of intelligent, customer-friendly battery charging models, as well as intelligent grid management and control skills, and can provide suitably versatile energy carriers - plans include an intelligent electricity charging and hydrogen infrastructure. In addition to already on-going"e-mobility projects", the new initiative is intentionally geared to variety.The"e-mobility Baden-Württemberg" project will involve the deployment of around 200 smart and Mercedes-Benz vehicles, with battery or fuel-cell drive systems according to the model. And within the medium term, further vehicles from the Daimler portfolio of emission-free electric vehicles will be brought into the strategic partnership, so the fleet of A-Class E-CELL, B-Class F-CELL and smart fortwo electric drive cars will be joined by the first series-produced electric delivery vehicle, the Vito E-CELL, and the Citaro FuelCELL hybrid bus, for example. In this way the inventor of the automobile will demonstrate the feasibility of electric mobility in all key mobility areas - individual transport, goods deliveries and urban public transport. EnBW plans to have over 700 charging points set up in Baden-Württemberg by the end of 2011, along with two or three hydrogen filling stations. The power supplied to EnBW charging points will be 100 percent hydro-generated.Internal combustion engine set to remain the most important drive system Mercedes-Benz sees the development of electric vehicles with battery and fuel-cell drive systems for future locally emission-free mobility as complementing the extremely clean and economical BlueEFFICIENCY models and hybrid vehicles already available today. State-of-the-art diesel and petrol engines will retain their position as the leading automobile engine technologies for many years to come - in passenger cars for individual transport, particularly for long-distance transport, and above all for freight carriage by road. On city streets, there will be increasing numbers of electric vehicles in future. Mercedes-Benz has therefore developed a multi-pronged approach to the issue, with the internal combustion engine continuing to play an important role. Notwithstanding the remarkable progress achieved with fuel-cell and battery-powered electric vehicles, there is no prospect of them replacing the internal combustion engine altogether within the short-term future. This is because of the system cost and infrastructure issues that still have to be resolved as the basis for the problem-free operation of electric vehicles across the whole of the country's roads.
